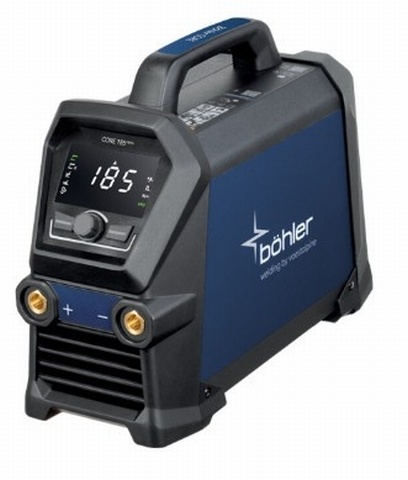

Bohler Core 185 MMA 230/110V Inverter Welder
Bohler Core 185 MMA 230/110V Inverter Welder Bohler Core 185 MMA 230/110V Inverter Welder Bohler Core 185 MMA 230/110V Inverter Welder

Bohler Core 185 MMA 230/110V Inverter Welder

£370.00 excl. vat RRP £477.00 - you save £107.00
(£444.00 incl. vat)

We proudly unveil the CORE series for MMA welding — a new generation of portable welding machines engineered for performance and designed to meet the demands of professionals for light fabrication, light construction and the repair sector. CORE welding equipment delivers unmatched reliability whether you're welding in the shopfloor, on-site, or in extreme outdoor condition.

Choose an option below:

Quantity

  • Parameter Profile Storage
  • Predictive Maintenance Alerts
  • Hot Start & Arc Force for smooth ignition and stable arcs

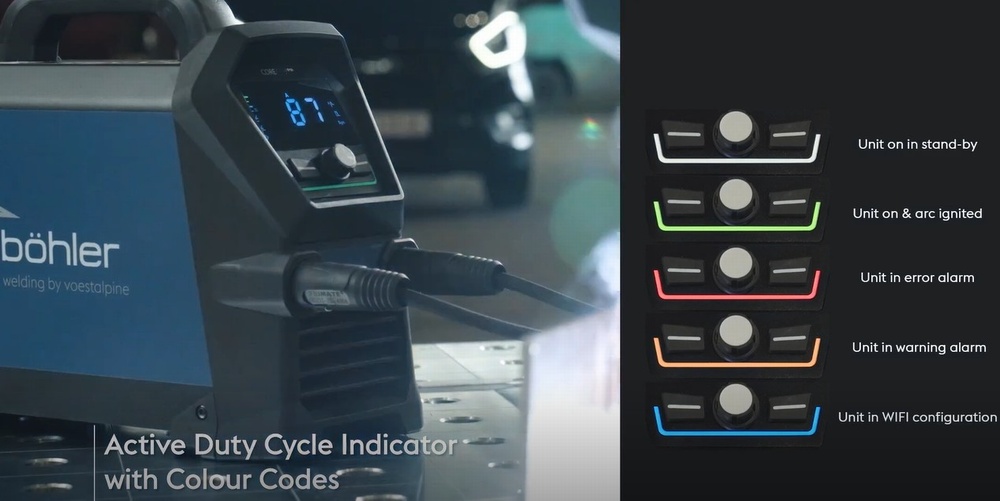

  • Active Duty Cycle Indicator with intuitive LED status bar
  • TIG DC Lift - TIG DC Lift Spot Welding
  • Single-phase 1x230V / 1x115V
  • Inverter technology

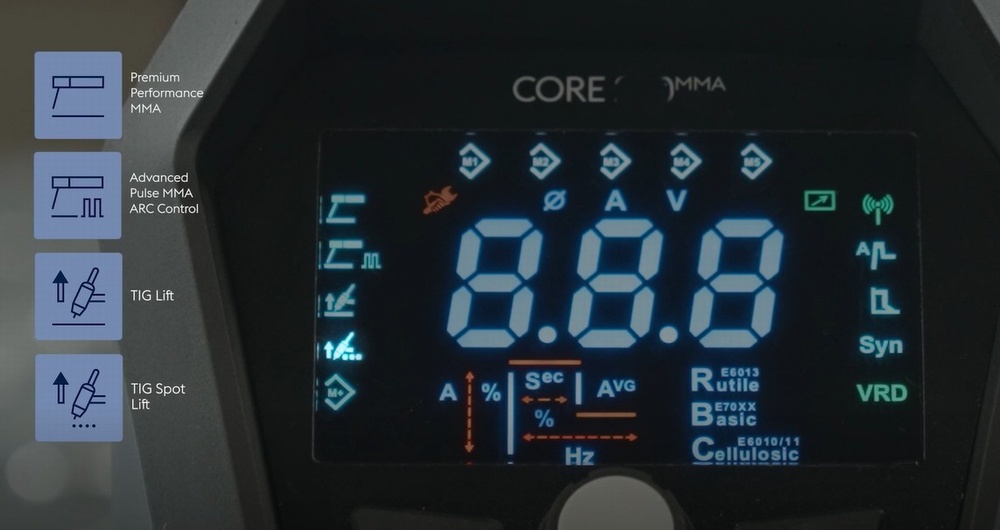

  • Backlit 4,1" multicolor user panel
  • Compact and professional
  • 185A@25% (40 °C)

CORE 185MMA is a single-phase power source for MMA welding, MMA
pulsed welding, LIFT-TIG DC (L-GTAW) welding and LIFT-TIG DC spot welding functions built for the toughest job sites.
Due to its high-grade, hybrid, composite and galvanized steel construction, CORE power sources are portable, durable, and resilient. CORE
is built to last!
Advanced customisable easy-to-read controls make setting parameters intuitive, and smart monitoring features keep welders informed.
CORE’s ergonomic design is free from sharp edges making its easy
to carry. The ergonomic and sturdy handle and shoulder strap makes
CORE ready to weld anywhere.
Adjustable Hot Start and Arc Force functions ensure smooth arc starts
and prevent electrode sticking, ideal for all welding positions.
Cool-Air management /wind tunnel, ensures optimal performance and
minimising service and maintenance time and costs.
PLEASE NOTE: On 110V 32A input supply required with maximum output of 110 amps

CORE 185MMA
Dimensions 429 x 172 x 316 mm
Weight 9.5 kg
IP protection rate IP23S
Insulation Class H
Power supply cable 3 x 2.5 mm² - 3 m
Power plug type 16 A 250 V Type F
Power supply (50/60 Hz) 1 x 230 (± 15 %) & 1 x 115 (± 15 %)
Maximum Input Power
230V 6.44 kVA
110V 3.24 kVA
Maximum Input current 28 A 27 A
Efficiency 90.3 % 87.2 %
Power Factor (P.F.) 0.99 0.99
Duty factor - 40 °C
230V 25 % – 185 A
230V 60 % – 120 A
230V 100 % – 93 A
110V 25 % – 110 A
110V 60 % – 71 A
110V 100 % – 55 A
No-load voltage 76 Vdc
Cos &1060; 0.99 0.99
Welding current;
230V 20-185 A
110V 20-110 A
