JEI HM50 2 Speed Magnetic Drill
JEI HM50 2 Speed Magnetic Drill JEI HM50 2 Speed Magnetic Drill JEI HM50 2 Speed Magnetic DrillJEI HM50 2 Speed Magnetic DrillJEI HM50 2 Speed Magnetic DrillJEI HM50 2 Speed Magnetic DrillJEI HM50 2 Speed Magnetic DrillJEI HM50 2 Speed Magnetic Drill

JEI HM50 2 Speed Magnetic Drill

£856.25 excl. vat
(£1,027.50 incl. vat)

Heavy duty 1150 W motor – enables larger cutting capacity.

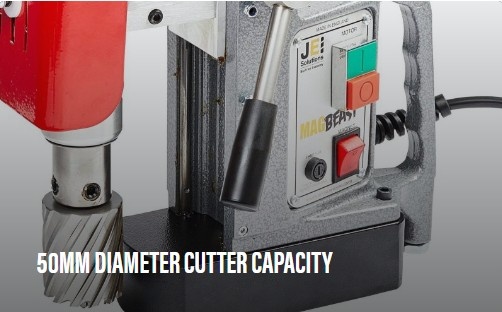

Weighs only 14 kg with a 50 mm cutter capacity – unrivalled weight to cutting capacity ratio.

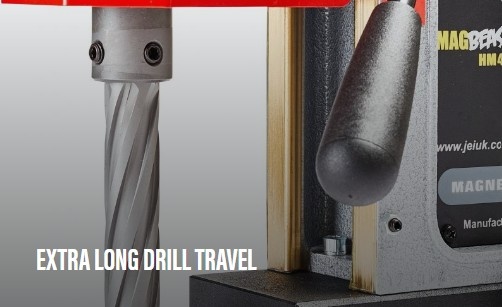

150mm total drill travel – facility to use extra-long cutters.

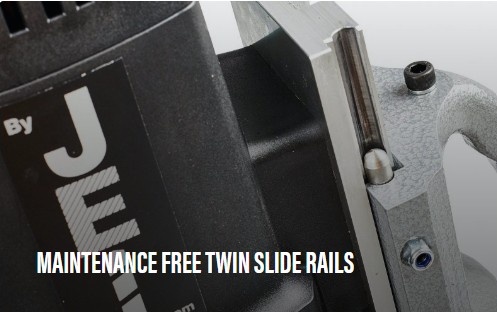

Maintenance friendly twin slide rails – no wearing parts and adjustment free operation.
Spoke handles can be fitted on left or right side for operator convenience (applies to all HM50 models).

Choose an option below:

Quantity

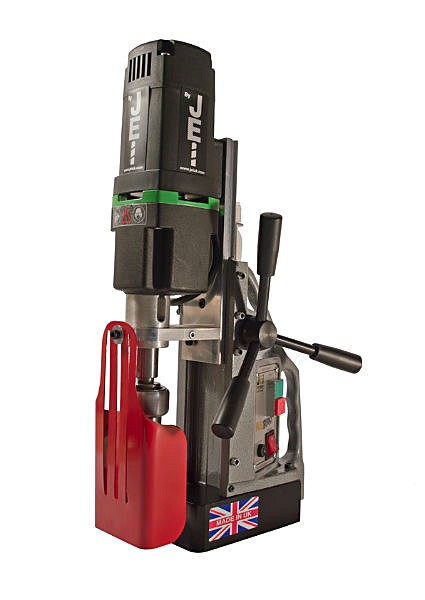

JEI's HM50 is a durable, heavy duty 2 morse taper magnetic drilling machine. Weighing just 13 kilos with a 1150 watt motor this model has an impressive cutting capacity of 50mm diameter to a depth of 100mm, and having two speeds this is suited to countersinking to a capacity of 40mm, an unrivalled weight to cutting capacity ratio. Made in the UK this is a high quality machine that offers JEI's maintenance friendly twin slid rails, and adjustment free operation.

Model HM50
Spindle MT2
Weight 14 kg
Max Stroke 180 mm
Cutter Capacity 50 mm Ø x 4” depth of cut

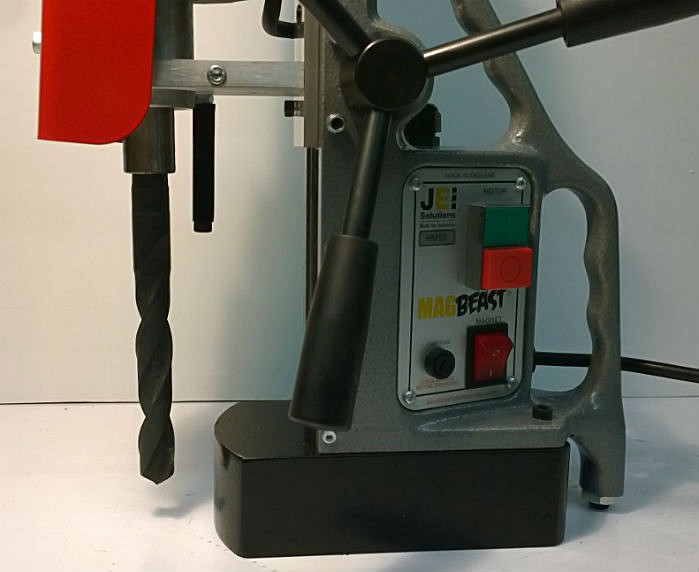

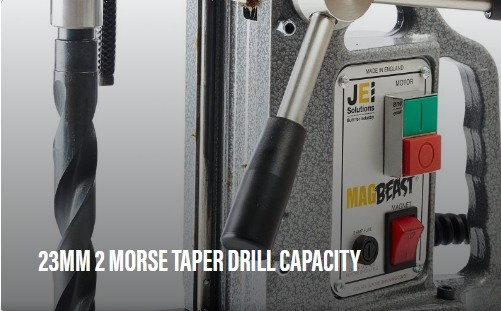

Twist Drill Capacity 13 mm with 2MT Chuck / 23 mm with 2MT Twist Drill
Countersink Capacity 40 mm
Reaming Capacity 22 mm (19 mm shank)
Motor 1150 W
RPM No load 465/720 RPM Loaded 250/450 RPM
Swivel Base n/a
Height min/max 380 / 560 mm
Length x Width 280 x 170 mm
Magnetic Base L x W 90 x 180 mm
Magnet Deadlift 1250 kg on 1” Plate (12000 N)
Noise Level < 90dB
Vibration Level < 2.5 m/s2
Voltage/ Part no 110 V - DRILL-HM50/1 / 240 V - DRILL-HM50/2
Shipping Weight 18.15 kg
Shipping Dimensions 490 x 380 x 200 mm
