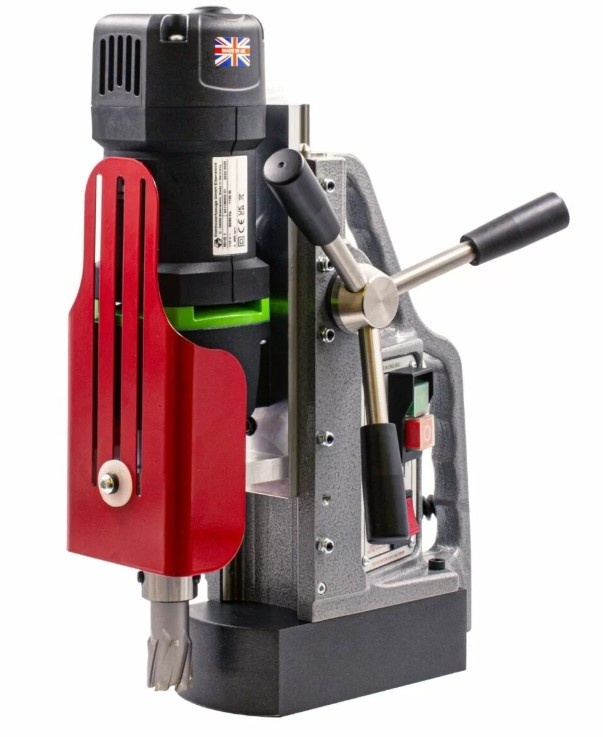

JEI Magbeast HM40EX
A lightweight and powerful magnetic drilling machine for maximum performance
Powerful 1100 W motor – enabling 40 mm cutter capacity

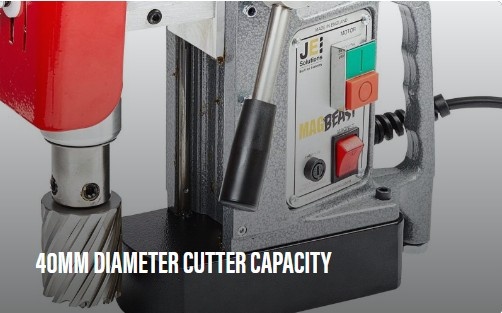

Weighs only 11.5 kg with a 40 mm cutter capacity – unrivalled weight to cutting capacity ratio.

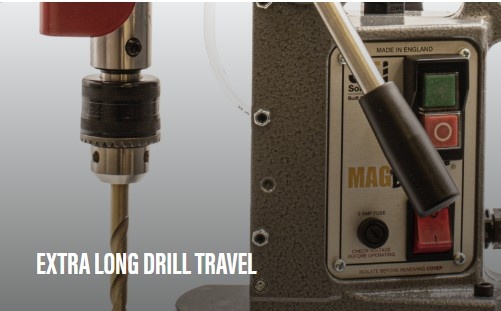

170mm total drill travel – facility to use extra-long cutters.

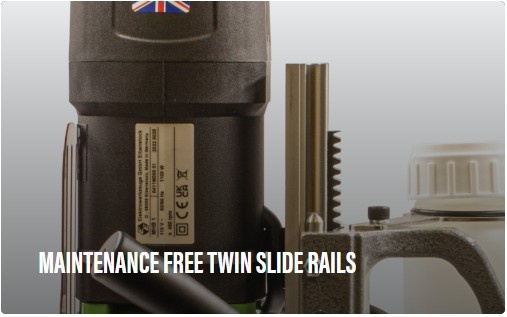

Maintenance friendly twin slide rails – no wearing parts and adjustment free operation.
Spoke handles can be fitted on left or right side for operator convenience.

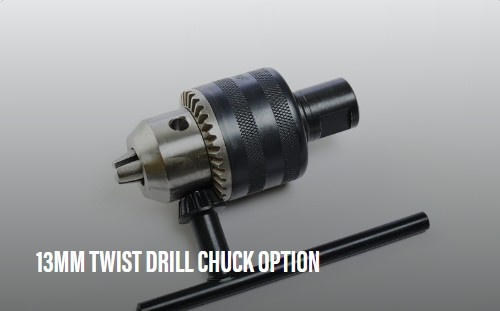

Easily adapted to use with additional chuck and adaptor kit to accept twist drills up to 13 mm (part no - JEICA-13MM/19)
The HM40EX is a compact, powerful magnetic drilling machine that’s engineered and manufactured in the UK. Designed to deliver maximum performance in tight spaces and demanding environments. With growing demand for lightweight machines that don’t compromise on performance, the HM40EX is the perfect addition to your range and it’s proudly built right here in the UK.
| Model HM40EX | |
| Spindle 19 mm | |
| Weight 11.5 kg | |
| Cutter Capacity 40 mm Ø x 110 mm depth of cut | |
| Twist Drill Capacity 13 mm Ø with optional attachment (part no - JEICA-13MM/19) | |
| Countersink Capacity 40 mm | |
| Motor 1100 W | |
| RPM No load 720 RPM | Loaded 450 RPM | |
| Swivel Base n/a | |
| Height min/max 320 / 500 mm | |
| Length x Width 280 x 165 mm | |
| Magnetic Base L x W 85 x 170 mm | |
| Magnet Deadlift 1100 kg on 1” Plate (10750 N) | |
| Noise Level < 90dB | |
| Vibration Level < 2.5 m/s2 | |
| Voltage/ Part no 110 V - DRILL-HM40EX/1 | 240 V - DRILL-HM40EX/2 | |
| Shipping Weight 16 kg | |
| Shipping Dimensions 460 x 360 x 180 mm |
