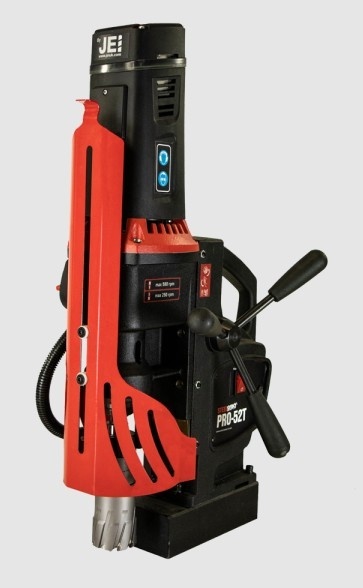

JEI Magbeast Premium PRO 52T

JEI Magbeast Premium PRO 52T

£1,400.00 excl. vat
(£1,680.00 incl. vat)

The PRO-52T is a powerful, universal tapping and drilling magnet machine suitable for hole cutting and tapping applications. Featuring a powerful 1600 W variable speed motor enabling cutting capacity up to 50 mm (2”) diameter.

Choose an option below:

Quantity

  • 1600 W powerful motor.

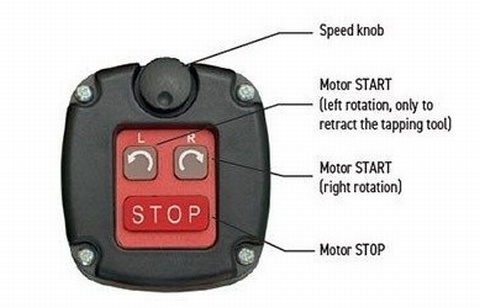

  • Intelligent speed control system.
  • Both overload and overheat protection.
  • Heavy duty 2-speed gearbox.
  • Tilt sensor.
  • 360-degree visual monitoring system.
  • Large coolant container.

The Magbeast® Premium Pro range from JEI represents the next generation of premium portable magnetic drilling solutions, engineered to maximise drilling performance in the most demanding applications. Designed and built with heavy-duty construction, the range delivers exceptional hole-cutting capability when reliability matters most. A unique three-stage LED indicator system provides operators with real-time control and monitoring of the drilling process, helping to maximise productivity while protecting critical machine components, extending machine service life, and enhancing cutting tool longevity. The PRO-52T is a powerful and versatile heavy-duty tapping and drilling machine featuring a 2MT spindle and a robust 1600 W variable-speed motor. Capable of milling up to 50 mm (2") and drilling up to 23 mm (7/8"), it is ideally suited for both hole-cutting and tapping applications. Additional features include an intelligent speed control system, overload and overheat protection, a heavy-duty two-speed gearbox, tilt sensor, 360-degree visual monitoring system, and a large-capacity coolant container for extended operation and improved efficiency.

Motor Speeds (under load) (1) 160-250 rpm (2) 390-580 rpm
Motor Power 1600 W
Weight 17 kg (37 lbs)

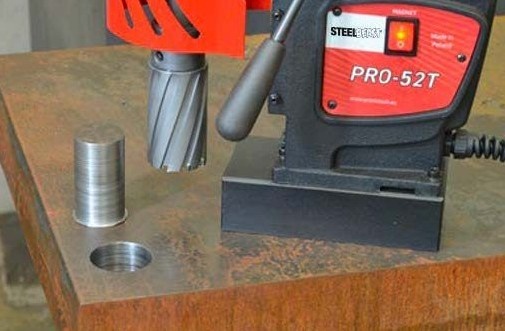

Max cutter capacity 50 mm (2")

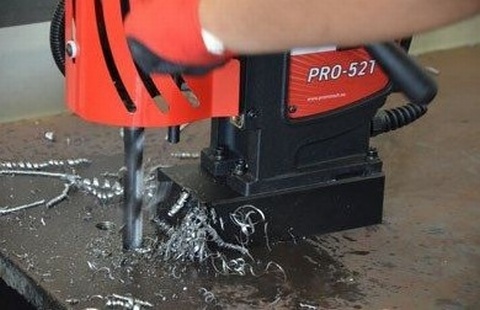

Max twist drill capacity 23 mm (7/8")
Tapping size M20 (3/4")
Stroke 190 mm (7-1/2")
Max depth of cut 75 mm (3") *
Magnetic clamping force 1122 kG (11,000 N)
Magnet Base Dimensions 90 x 180 x 48mm
Min, Workpiece Thickness 8 mm (5/16)
Spindle MT2
Tool holder 19 mm (3/4") Weldon
