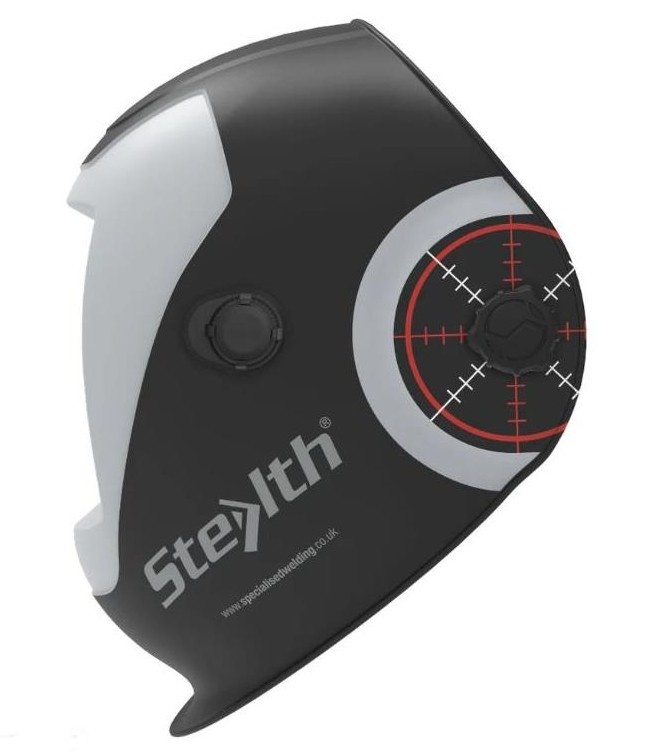

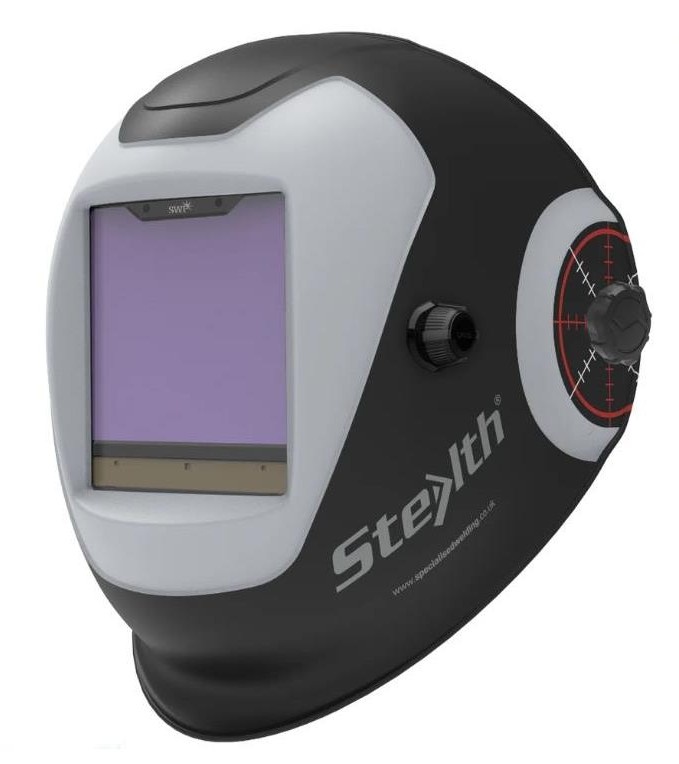

Stealth Digi-Tech Auto Darkening Welding Helmet

Stealth Digi-Tech Auto Darkening Welding Helmet

£120.00 excl. vat
(£144.00 incl. vat)

The Stealth Digi-Tech 3149-ST is a large viewing area auto darkening welding helmet with a shade selection of from 5 - 13EW

Choose an option below:

Quantity

  • Filter Data
  • Large welding vision
  • Working from 2amps is ideal for TIG and Plasma welding
  • Auto shading to maximise the ADF filter and protection
  • 2nd Generation True Colour-Class leading
  • State Shade 3 due to the new generation true colour technology
  • Auto and manual shade settings
  • Fully adjustable sensitivity and delay to optimise setting for all type of welding in MIG, TIG and Plasma.

The Stealth Digi-Tech 3149-ST Auto-Darkening Welding Helmet offers a very large viewing area of 102.50mm x 102.50mm combined with a four sensor darkening system. With 2nd generation true colour this hads increased clarity showing real colours rather than green or blue shades. An Auto shading function maximises the capability of the ADF (Auto Darkening Filter) and improves protection by sensing the light and setting itself to an optimal darkness to protect the wearer’s eyes. The operator can switch manual settings so they can select
their own based on the welding application and preference.

A working range from 2 Amps provides the ideal protection requirements at lower shade levels for processes such as TIG and Plasma Welding. The DigiTech has fully adjustable settings for sensitivity and delay ensures optimisation of settings for all types of welding in MIG, TIG and Plasma.

The Digi-Tech welding helmet has the highest optical clarity classification (CE Classification: 1/1/1/1).

NEWLY updated design
Filter Dimensions 114 x 113 x 9.5mm
Viewing Size 102.5 x 102.5mm
Sensors 4
Ambient Light Sensor 4
Auto Shade Yes
Light Shade 3
Shade Deviation of Auto +/- 2
Switching Time 0.04ms

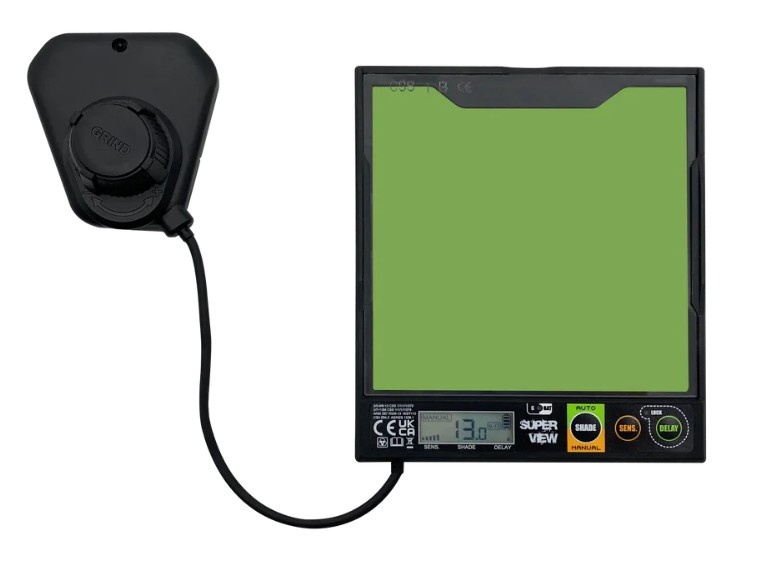

Grinding Function Yes – external control
Lock Shade-Grinding Yes
Sensitivity Adjustable
Delay Time Yes Level 1-5 0.1-0.9ms
Battery Indicator Yes
Operation Temperature -54F – 149F
Storing Temperature -77F – 185F
Power Supply 2 x CR2450
Minimum Amperage 2A

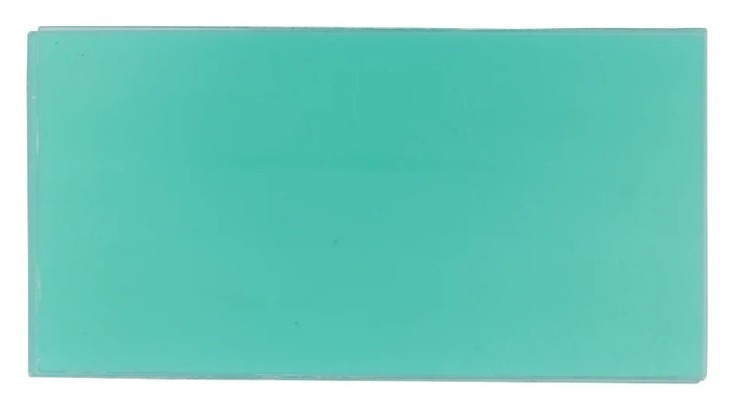

Inner Lense 106 x 66 x 1.0mm

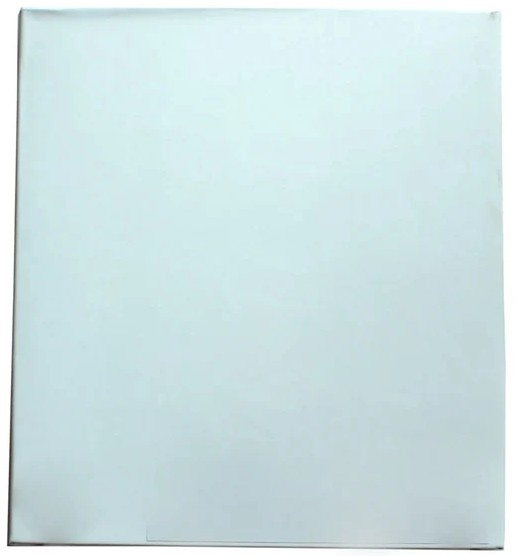

Outer Lense 114 x 113 x 1mm
